Sovelia Vault 2024.1 Release news
Sovelia Vault 2024.1 introduces more model state options for both BOM and secondary documents. This release also includes more options for item export and some requested improvements and fixes.
Read the latest news and all major inclusions into the 23.1 release of Sovelia PLM below.

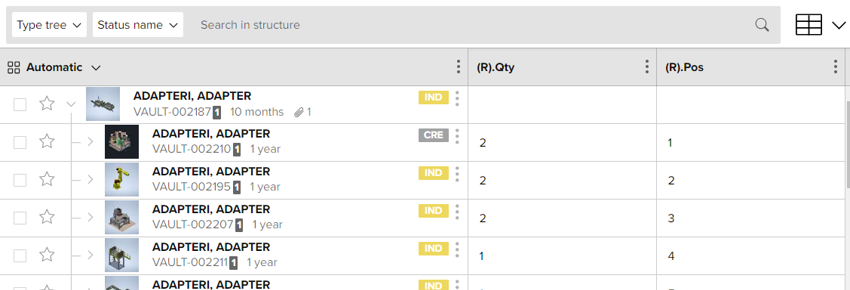

The structure search

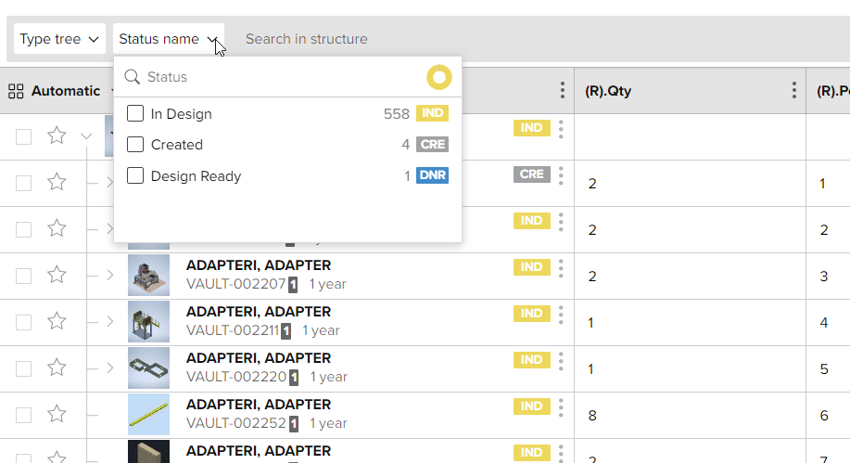

In the Sub tree search, the search information is contextual. In the example below the sub tree only contains 3 status types, so only 3 are listed for selection.

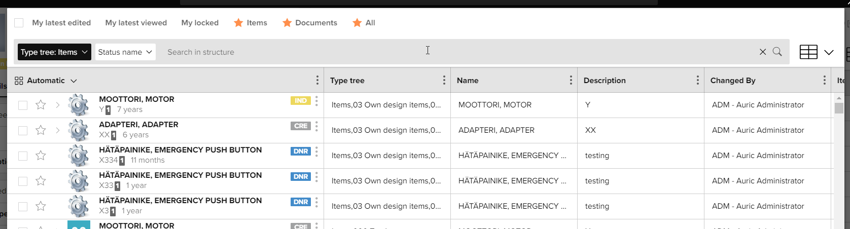

Favourites
Linking menu

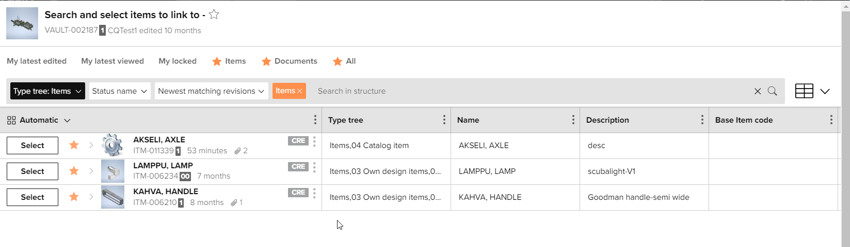

The link menu or in place search gets a refresh to make the interface more user friendly and easier to understand and find the correct object(s) you are looking for.

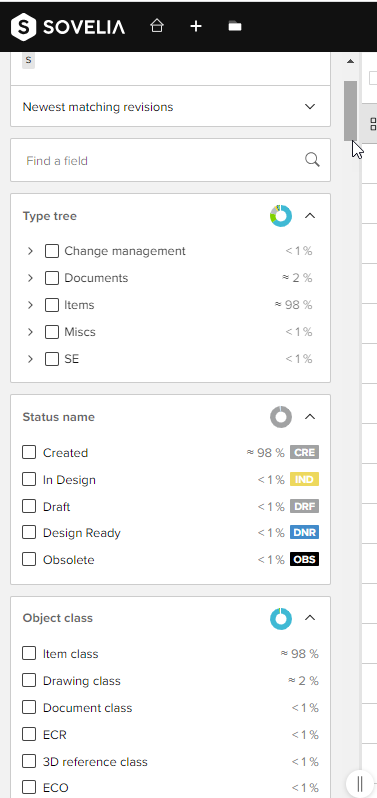

New controls have been added to the search analysis section down the left hand side of the screen once a search has been performed.
Type tree, Status name & Object class will always be shown at the top of the list.

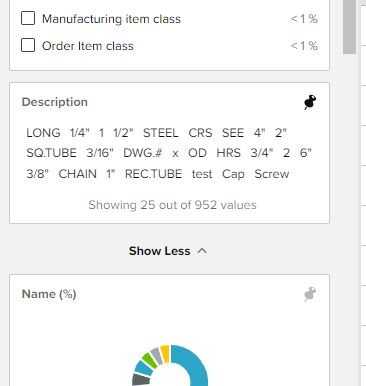

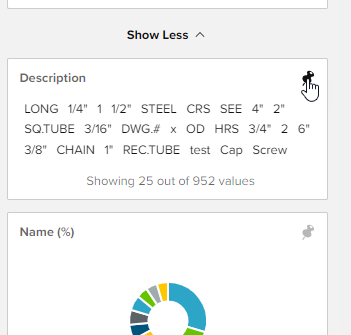

Below those three sections and the Show Less section with all the other data fields. In the example below Description is the data field that is shown. By clicking the paperclip in the top right, it moves the box above the Show Less line and always visible.
Sometimes when you search you have little idea of how big a task you have asked Sovelia or maybe you just change your mind. If the results of your search are not displayed immediately (usually within about 5 second) the cancel option will appear in the search bar and you will have the option of cancelling the search.

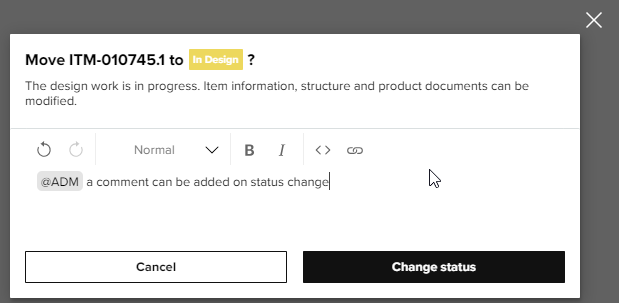

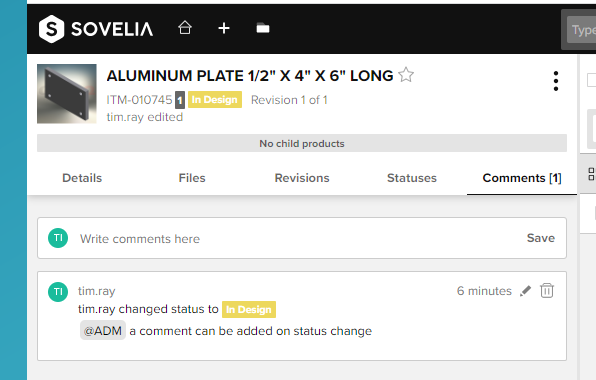

As part of a status change, a comment can also be now added. Adding the functionality of comments into the status process opens up a new interaction for users. Adding an @ and a users name will enable a notification to be sent to that person.
Once the status has been changed a notification will be sent to the user. In this case @ADM

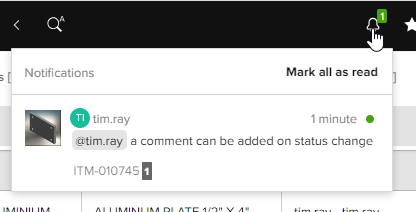

Clicking the bell icon expands the Comment.
The notification is temporary and can be turned off or it stops after 30 days. The comment will always stay connected with the object and is displayed in the comment section of the object card.
We have introduced the ability to use the arrow keys on the keyboard to navigate some fields in the window.

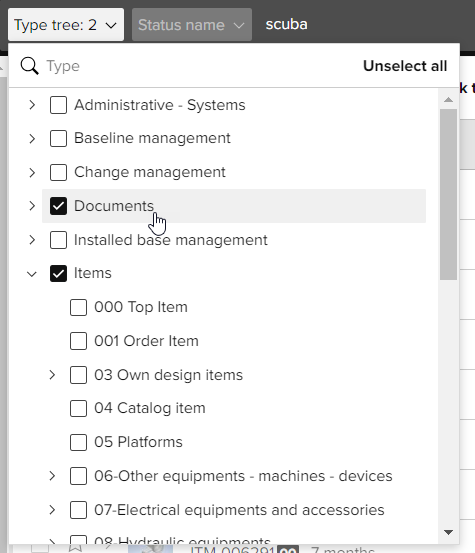

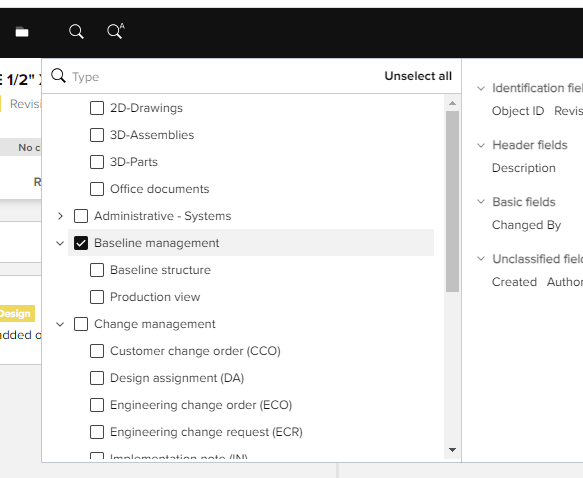

An example here is the advanced search function, using the Up & down arrow keys scrolls up and down the next field. Using the left and right arrows expands and contracts the sub levels.

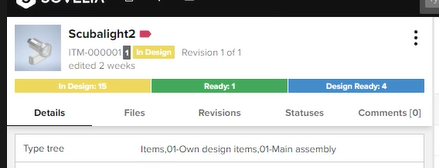

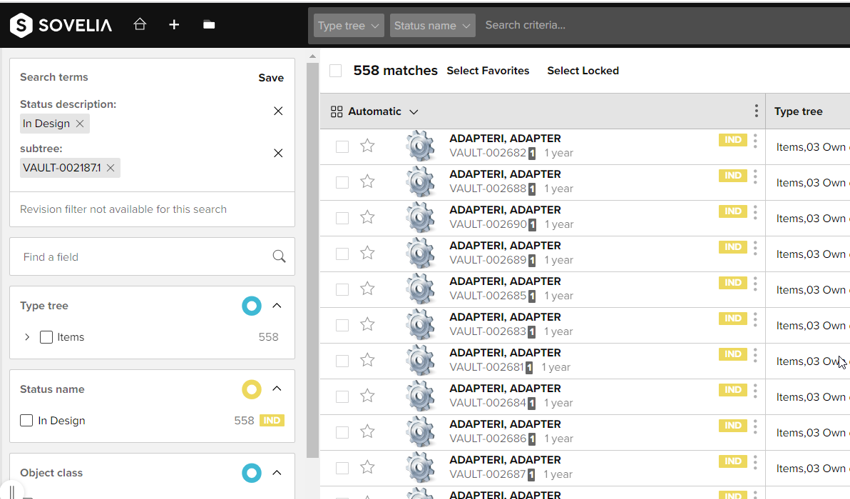

Clicking on the colored status bar in the object card takes the user to the results displayed in a grid format.
We continue on our journey to empower users with the ability to administer their own Sovelia PLM. With this release we have added some new functionalities supporting this.
Identifier sequences

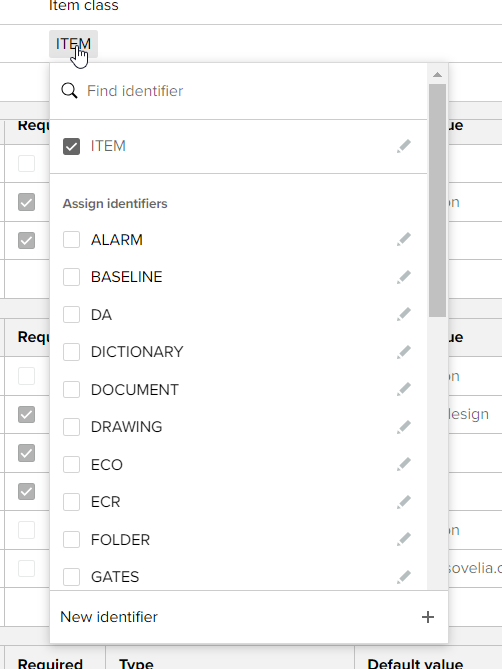

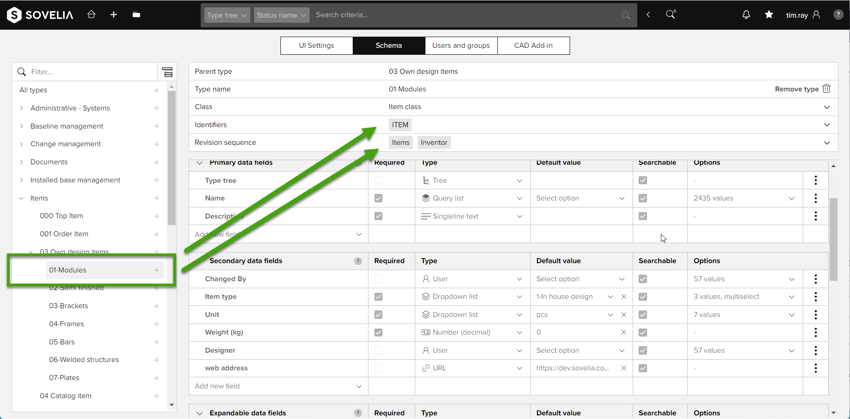

Once an identifier has been created, it can be assigned to an object type. The Identifier can also be edited or tweaked if the need changes or you didn't get it right the first time.
Revision sequences

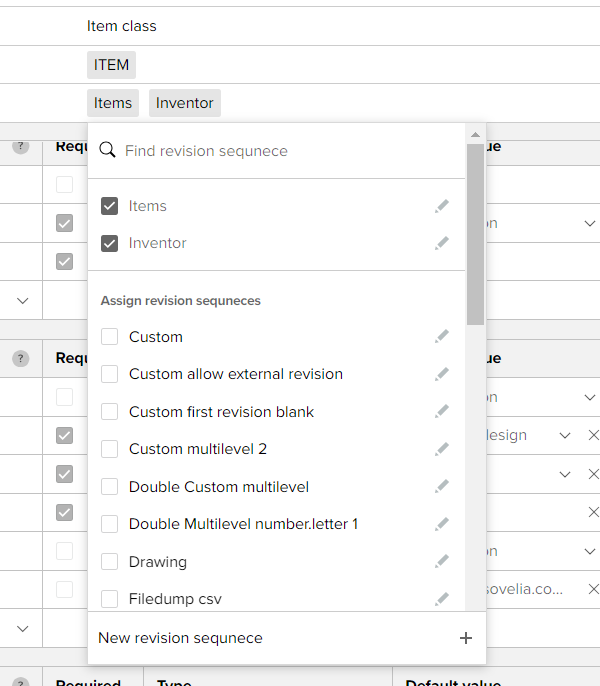

Revision sequences can be created, assigned to an object type, edited and unassigned.

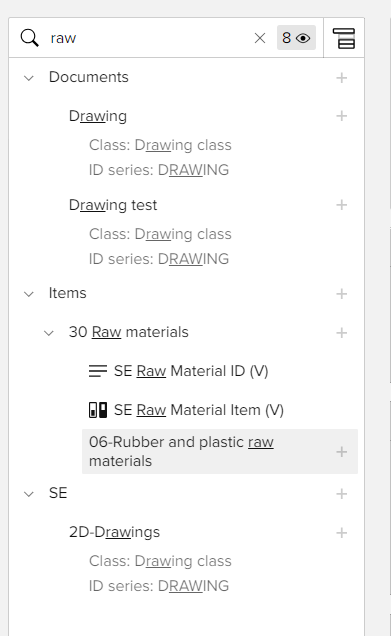

As the search functionality of the Administration tools grows there is more needs to find the correct tree type, data type or other value. To make the task of finding easier we have made the whole data model content searchable from the top of the window. A number of controls in the search box enable expansion or collapse of the search results.
